The perfect partner for PMUTs – the SC517 ultrasonic transducer
Ideal addition to PMUTs

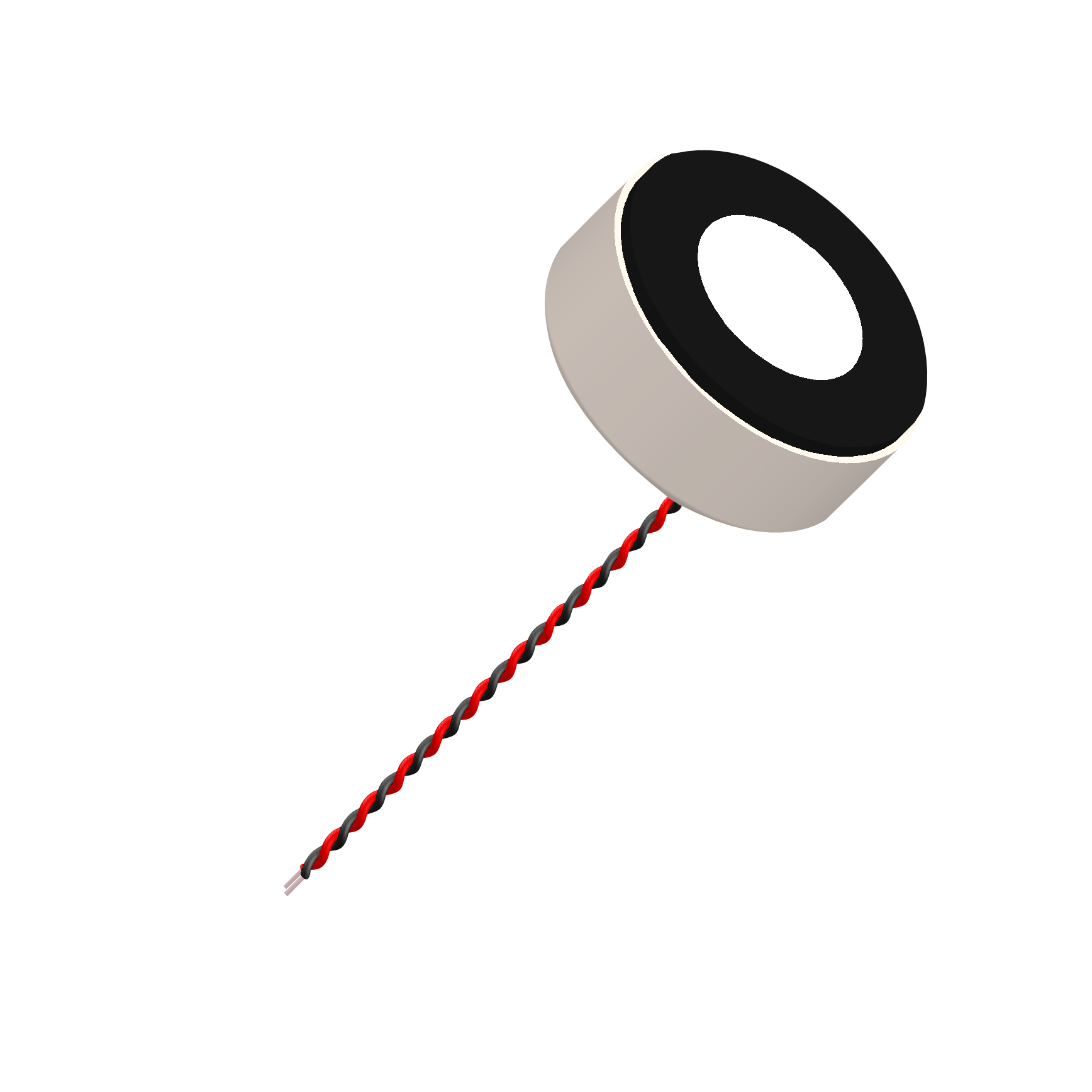

Our new, powerful 175 kHz multi-use transducer SC517 is ideal for use with highly sensitive PMUTs. It was specially developed for applications that require reliable ultrasonic transmission combined with high sensitivity in reception.
Thanks to the redesign of the matching material, the SC517 impresses with a particularly strong echo signal and excellent performance in the working range between 0.1 and 1 meter. Its robust construction in a sheet metal shield, comparatively large range, and cost-effective design make it the ideal solution for compact and demanding ultrasonic applications.
We are happy to customize our SC517 to your specific application.
Combined sensor system for maximum efficiency
PMUTs (piezoelectric micromechanical ultrasonic transducers) have been commercially available for several years and are characterized by their high sensitivity and small size. Compared to other ultrasonic sensors, they are weak transmitters but highly sensitive receivers—perfect for precise measurements with low energy consumption.
This combination gave rise to the idea of a hybrid ultrasonic sensor system: The SECO SC517 ultrasonic transducer performs the transmission function, while a PMUT acts as a highly sensitive receiver. This solution combines range, precision, and energy efficiency—ideal for modern applications in industry, robotics, and consumer electronics.
Please also read the article “SECO+PMUT for ranges up to 30 meters.”
Next-generation multi-use transducer: The SC5X series
The SC5X series features our multi-use transducer in a redesigned form with further improved performance. The new models combine the comparatively high range of focused ultrasonic transducers with the fast repetition rate of pulsed transducers—ideal for a wide range of industrial applications.
Multi-use transducers from SECO Sensor are universally applicable and enable the design of efficient sensor solutions for a wide variety of measurement tasks. Depending on their size, they operate in a frequency range from 80 to 400 kHz and offer the high echo voltage you have come to expect from our multi-use transducers. Thanks to their revised design, the SC5X transducers score with particularly short settling and decay times. This enables higher repetition rates and ensures greater efficiency in your production – whether for distance measurement, level detection, or object tracking.
Your direct link to PMUT expertise
Would you like to integrate PMUTs into your application or develop a combined sensor system? Our team is here to assist you with personal support and technical expertise. We provide individual advice tailored to your requirements and areas of application.
Get in touch with us – we look forward to working with you to move your project forward.
Eugen Gergert
Managing Director
Details of the PMUT
Miniaturized ultrasonic technology with PMUTs
PMUTs (Piezoelectric Micromachined Ultrasonic Transducers) are miniaturized ultrasonic transducers based on the piezoelectric effect. Compared to conventional ultrasonic transducers, they offer significantly higher integration capability and particularly low power consumption—ideal for portable and compact applications.
Design and functionality
Made from thin piezoelectric layers on silicon substrates, PMUTs enable precise measurements and small-scale imaging. They are used in numerous industrial areas, such as automotive engineering, medical technology, robotics, and in mobile devices for distance measurement and gesture recognition.
Advantages for modern sensor solutions
Another advantage of PMUTs is their compatibility with modern semiconductor processes. This allows them to be integrated directly into CMOS circuits, which facilitates the development of system-on-chip solutions. This integration not only reduces space requirements, but also the complexity and cost of the overall systems. Thanks to their small size, high energy efficiency, and scalability, PMUTs are considered a key technology in modern ultrasound technology—especially where compact, intelligent, and energy-efficient sensor solutions are required.
