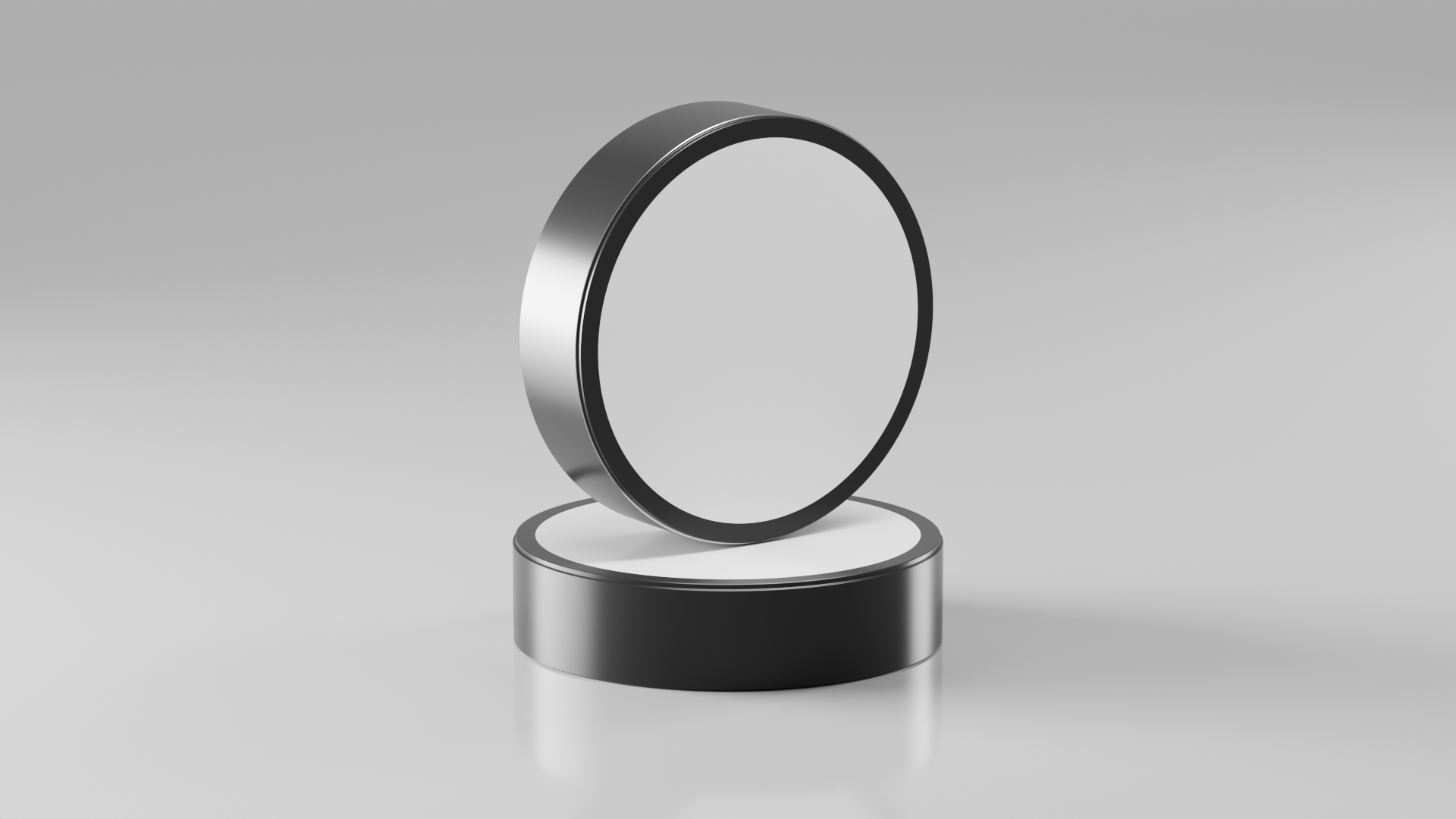

SC5X – Series: The next generation multi-use transducer
Even more powerful thanks to new design
The SC5X series sees our multi-use transducers unveiled in a redesigned format and with even better performance. When driven appropriately, SECO Sensor’s multi-use transducers combine the comparatively long range of directional ultrasonic transducers with the fast repetition rate of pulsed transducers.
This makes them universally applicable products that can be used to design industrial sensors for a wide range of measuring tasks.
SC5X ultrasonic transducers are our next-generation multi-use transducers. Depending on their size, they operate in a frequency range of 80 to 400 kHz and deliver the high echo voltage typical of multi-use transducers.
Thanks to the optimized design, they score points with even shorter settling and decay times and thus enable higher repetition rates – for more efficiency in your production!

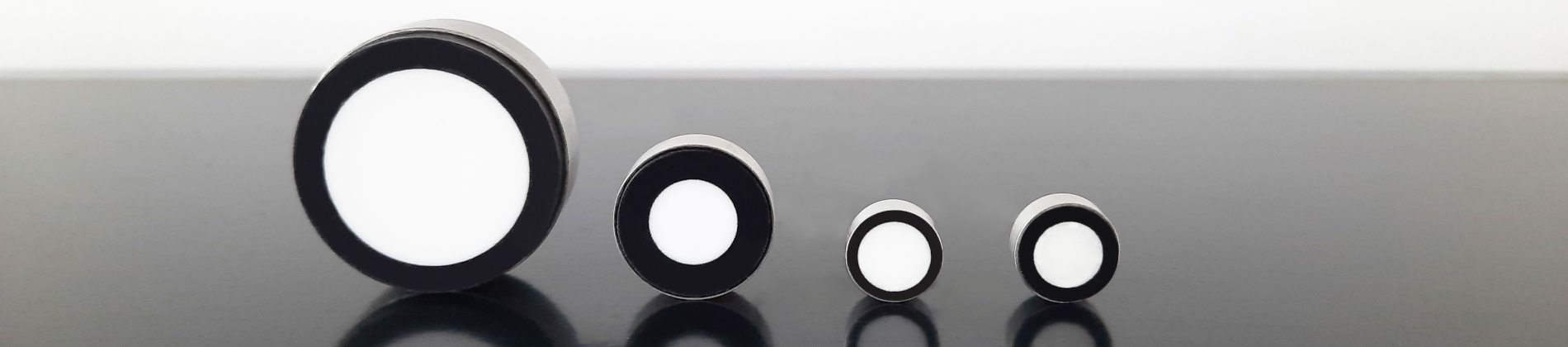

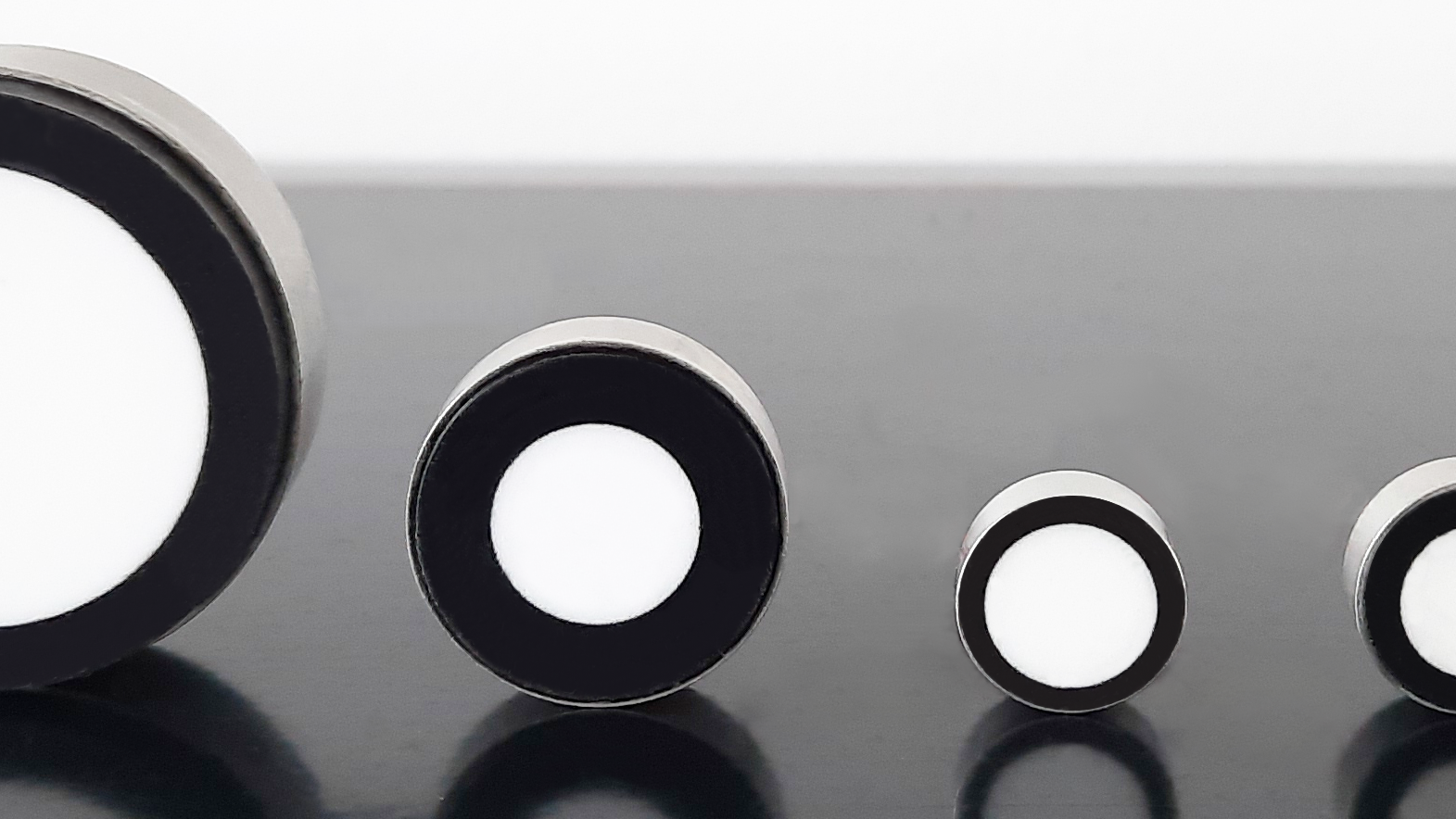

Ultrasonic transducers from our SC5X series:
The SC517 transducer has been specially designed for use as a transmitter in combination with highly sensitive PMUTs as receivers. When used with piezoelectric micromechanical ultrasonic transducers, such as those from TDK, maximum ranges of several metres are possible. Please also read our article “SECO+PMUT for ranges of up to 30 metres”.
Or get in touch with us directly!
SC508
Full power at 80 kHz.
- Operating frequency: 80 kHz
- typ. Range: 700 … 5500 mm
- Installation diameter: 40 mm
- Installation height: 16 mm
- Opening angle: max. 13°
- Operating temperature: -10…70°C
SC517
Perfect partner for PMUT.
- Operating frequency: 175 kHz
- typ. Range: 100 …1000 mm
- Installation diameter: 23.7 mm
- Installation height: 9.3 mm
- Opening angle: max. 12°
- Operating temperature: -10…70°C
SC520
Practical all-round frequency.
- Operating frequency: 205 kHz
- typ. Range: 100 … 800 mm
- Installation diameter: 14.3 mm
- Installation height: 7.5 mm
- Opening angle: max. 12°
- Operating temperature: -10…70°C
SC524
- Operating frequency: 240 kHz
- typ. Reach: 100 … 750 mm
- Installation diameter: 15.3 mm
- Installation height: 7.3 mm
- Opening angle: max. 13°
- Operating temperature: -10…70°C
SC530
- Operating frequency: approx. 300 kHz
COMING SOON
SC540
- Operating frequency: approx. 400 kHz
COMING SOON
Our specialist for the SC5X series
Are you planning to use SC5X ultrasonic transducers in your application, or are you looking for the ideal model for your measurement task? Our product expert will provide you with personalised, practical and targeted advice – from selection right through to successful implementation.
Get in touch with us now and let’s work together to find the most efficient solution for your application.
I look forward to your inquiry!
Stefan Schneider
Product manager
How can you use the SC5X…
…measure at high speed?
Short rise and fall times enable rapid measurements and high repetition rates – for accurate measurements in near real time.
…sound far away?
Our redesigned, high-performance model offers a long range of between one and six metres.
…reliably detect?
Die optionale Montage in unserem robusten Metallschirm erhöht die Widerstandsfähigkeit und EMV-Verträglichkeit der SC5X-Ultraschallwandler.
Applications from practice
Level measurement
Fast and contactless determination of fill levels even in small containers.
Distance measurement
Distance measurement and presence detection in automated production lines.
Flow measurement
Wear-free transit time difference measurement for air and gases, e.g. also in medical technology.
Why ultrasonic transducers from SECO Sensor?
Ultrasonic transducers from SECO Sensor can be used in conjunction with air or gas for almost all industrial measurement tasks. In the pulse-echo method, for example, they enable the non-contact measurement of distance, level or flow, whilst in transmitter-receiver mode they facilitate double-sheet detection and web edge control. Particularly practical: no wearing parts are used, meaning the transducers are completely maintenance-free. We are happy to develop and manufacture exactly the ultrasonic transducer you need and tailor it specifically to your particular measurement task and installation situation. SECO Sensor offers you numerous mounting options and additional equipment. Do you have a complicated or unusual measurement task, or perhaps just an idea?
Talk to us!
Together with our ultrasonic professionals, we design the perfect SECO sensor ultrasonic transducer for your special application.
