SC008 vs. SC049 – Our smallest vs. largest ultrasonic transducer
Ultrasonic transducers for every application –
from miniature to maximum range
SECO Sensor offers innovative ultrasonic transducers for a wide range of measurement tasks – from installation in the smallest assemblies to applications with long ranges.

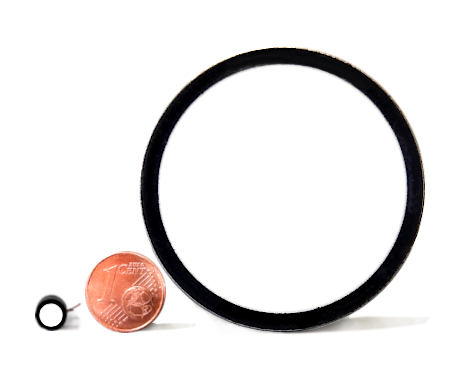

Our smallest ultrasonic transducer, the SC049, measures just 6 millimeters in diameter with an installation height of 5 millimeters. This makes it significantly smaller than a 1-cent coin and allows it to be easily integrated even into very compact measurement setups. In contrast, the SC008, with a diameter of 60 millimeters, offers the longest range in our portfolio – over 6 meters.
Curious? Discover all our product variants in our product catalog.
The right ultrasonic solution for every measuring task
Our range of ultrasonic transducers typically covers a frequency range between 80 and 500 kHz. The lower the frequency, the larger the diameter of our transducer. Our smallest ultrasonic transducer has a size of only 6 x 5 millimeters. This makes it ideal for measurement set-ups in which the installation situation requires the smallest possible dimensions.
SC049 vs. SC008 – Miniature meets long range
With the SC049 and SC008, SECO offers two ultrasonic transducers that could hardly be more different – yet perfectly cover the spectrum of modern measurement technology. Measuring just 6 × 5 millimeters, the SC049 is extremely compact and ideal for applications with limited installation space, short measuring distances, and high repetition rates. The SC008, on the other hand, impresses with a diameter of 60 millimeters and a range of over 6 meters – perfect for large detection areas and demanding industrial environments. Together, they demonstrate how versatile ultrasonic technology is today – from miniaturization to long-range measurement.
SC008 vs. SC049 – A Comparison
Our largest – SC008
Key data:
- Focused transducer
- Component size: 60 x 16 mm
- typ. Range: 800…6000 mm
- Operating frequency: 80 kHz
- Small opening angle: approx. 7°
- Operating temperature: -25 to 70°C
SECO recommends: We install the SC008 as standard in a robust sheet metal shield for use in challenging environmental conditions, such as in agriculture or road construction.
Our smallest – SC049
Key data:
- Multi-use transducer
- Component size: 6 x 5 mm
- typ. Range: 15–200 mm
- Operating frequency: 500 kHz
- Large opening angle: approx. 18°
- Operating temperature: -15 … 70°C
SECO recommends: We cast the SC049 into a flexible polyurethane molded part for particularly easy installation in small assemblies, for example in automation or robotics.
Our experts for the SC008 and SC049
Would you like personal advice on our largest or smallest ultrasonic transducer? Our product managers will be happy to take the time for a personal consultation by phone or online.
Contact us!
We look forward to your inquiry.
Martin Röder
Product manager SC008
Stefan Schneider
Product manager SC049
We are happy to customize your ultrasonic transducer
Our strength is our flexibility
Our proven standard ultrasonic transducers have been used by renowned customers worldwide for many years. In addition, customized transducer solutions are in high demand, which we develop in close consultation with our customers for specific measurement tasks as required.
Direct installation in the customer’s housing and special measures for reliable measurements—even under demanding environmental conditions—are particularly popular. In addition to numerous housing variants, we offer a wide variety of contact types and extensive additional equipment.
Do you also need a customized solution? Contact us—we look forward to hearing from you!
