Multi-use transducer
Multi-use transducer are our flexible all-rounders.
Our multi-use transducer consist of a piezo ceramic and a matching material disk and are extensively customizable in terms of housing, contacting and additional features.
Key data:
- Compact design and small diameters
- High echo voltage and long range
- Fast swing-out
- Very large beam width
- Focusable sound beam (optional)
- Cost-effective design
Our tip:
Our 300 kHz- multi-use transducer are ideal for anemometry applications.
Multi-use transducer
Multi-use transducer are our flexible all-rounders.
Our multi-use transducer consist of a piezo ceramic and a matching material disk and are extensively customizable in terms of housing, contacting and additional features.
Key data:
- Compact design and small diameters
- High echo voltage and long range
- Fast swing-out
- Very large beam width
- Focusable sound beam (optional)
- Cost-effective design
Our tip:
Our 300 kHz- multi-use transducer are ideal for anemometry applications.
Advantages of our multi-use transducer
Multi-use transducer from SECO Sensor are specially tailored to the requirements of industrial applications and offer numerous advantages:
Compact design
Optimized design and small diameter for installation even in assemblies with limited space
High echo voltage
for reliable measurement at ranges from a few centimetres to several meters
Fast ring-out
Short rise and decay times for fast measurements and high repetition rates
Largest beam width
Very large beam width for reliable measurements even in heavy drifts, sound beam optionally focusable
Cost-effective design
Optimized transducer design with minimum material requirements and maximum performance
Whether individual or standard – we will be happy to advise you.
We also offer proven standard transducers or customizable transducer solutions that are individually tailored to your requirements in the area of multi-use transducer. SECO Sensor develops, produces and supplies ultrasonic transducers, especially where robust, maintenance-free and high-quality components are required.
Contact us today to find out more about our multi-use transducer!
Stefan Schneider
Product manager
Why ultrasonic transducers from SECO Sensor?
High-quality materials
It starts with our tried-and-tested material concept consisting of specially developed and in-house produced acoustic matching materials, self-assembled strands and high-quality potting compounds according to our own recipes. These innovative materials enable fine, individual tuning of the electro-acoustic properties of the transducer and ensure optimum sound transmission.
Another key to the outstanding quality of our ultrasonic transducers is the use of premium PZT ceramics (piezoelectric materials) – preferably from German suppliers. These highly developed ceramics are crucial for the effectiveness of the ultrasonic transducers, as they have a high quality and low fluctuations. This guarantees that sensors with our transducers work reliably and accurately even in the most demanding measurement environments.
The combination of material and experience
Our expertise is not limited to materials. We have decades of experience in the development and series production of ultrasonic transducers for air and gases. The know-how of our product managers and our production staff enables us to offer customized solutions for a wide range of applications. Whether you need ultrasonic transducers for distance measurement, double sheet control or wind measurement – we have the experience and the technology to support you with your individual measurement task.
Our customers know that the quality of the ultrasonic transducer is a decisive factor for the overall quality of their sensors. With ultrasonic transducers from SECO Sensor, you can be sure that your sensors will deliver reliable and accurate measurement results even under extreme environmental conditions or in challenging installation situations.
High-quality materials – for outstanding quality
Our aim is to build high-quality, durable and robust ultrasonic transducers with outstanding electro-acoustic properties. We pay particular attention to the four main components: piezo disk, matching material, potting compound and stranded wire. With many years of experience, we manufacture our own material for this or source it from reliable suppliers with the highest quality standards. In this way, we ensure that our customers receive only the best products – with every ultrasonic transducer that leaves our company.

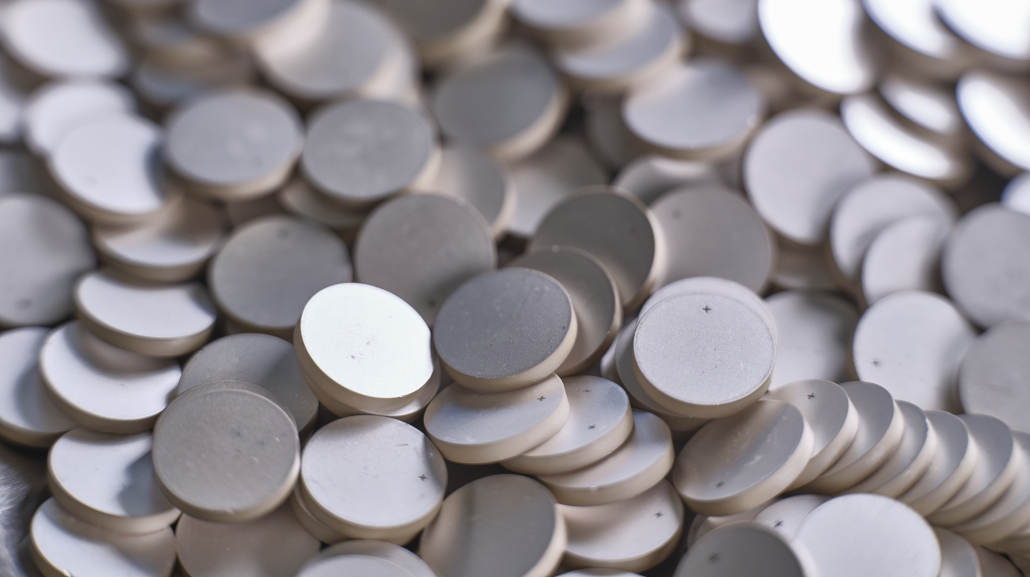

Piezo disk
We source our piezoceramic transducers from selected suppliers with above-average quality standards – preferably from German suppliers. This is characterized by a high degree of efficiency as well as minimal geometric and electrical tolerances.

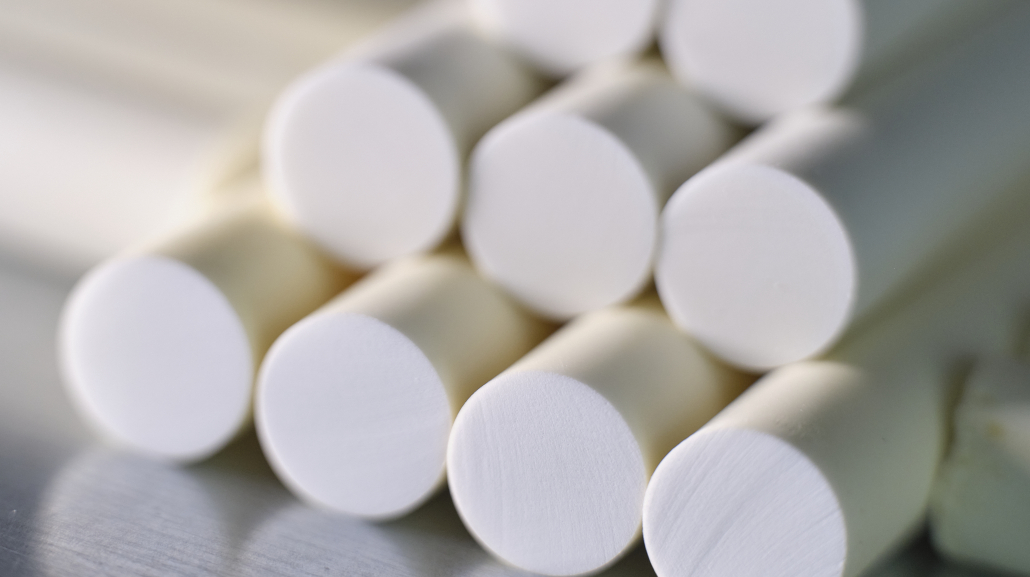

Matching material
We produce our matching material in-house according to our own proven recipes. To achieve the best possible results, we use a particularly light, pressure-resistant epoxy filled with hollow glass beads, which is subject to only minimal fluctuations compared to products from external suppliers.

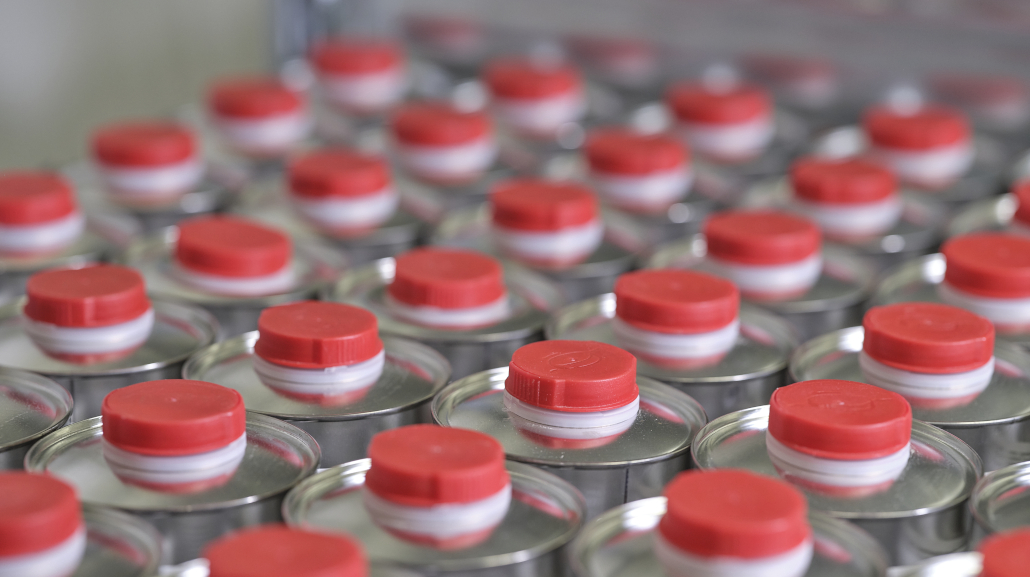

Potting compound
Potting with our specially formulated, soft-elastic polyurethane foams gives your transducer both mechanical stability and excellent structure-borne sound suppression – especially in cold conditions. We use customized potting compound recipes to achieve optimum acoustic parameters, adapted to your requirements.

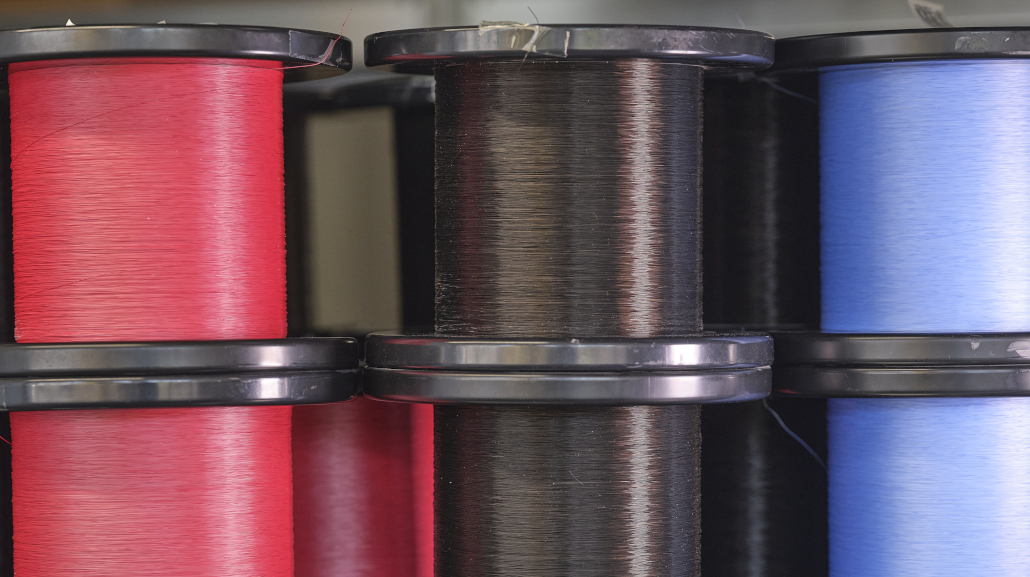

Stranded wire
We mainly assemble our coaxial, Teflon and PVC strands ourselves. This enables us to ensure the highest quality and implement customer-specific adaptations quickly and easily. Short delivery times are also possible for special sizes. Our direct access to the production process allows us to carry out close checks and ensure consistently high strand quality, e.g. in accordance with IPC-A-610, class 3.
Our experienced team – for your success
For us, our employees are more than just anonymous cogwheels. Our corporate culture is characterized by flat hierarchies and open, respectful communication. Together, we manufacture ultrasonic transducers of outstanding quality with great expertise. Your satisfaction is our goal – we work on it every day.
For us, this means
Customer-oriented support
- Individual support
- Close cooperation
- Constructive communication
- Personal contact person
- Reliable accessibility
Qualified team of experts
- Comprehensive support for your product
- All-round technical support
- Excellently trained experts
- Development of new solutions
- Customization, small quantities
Machine-supported manual work
- Narrowly tolerated production parameters
- High process stability
- comprehensively trained employees
- Final test on 100% of the transducers
- ISO 9001:2015 & ISO14001:2015
“We develop an innovative solution for almost every measuring task. Individual support and intensive discussions with our customers are particularly important to us. From the initial idea to prototype construction and series production, we rely on a close exchange of ideas and qualified technical advice.”
“For offshore systems, we also equip our anemometer transducers with an optional scratch-resistant, water and dirt-repellent protective coating. This prevents droplet formation on the surface and icing of the front surface.”
“SECO Sensor is increasing its presence on social media. Contact and networking via LinkedIn and online channels is also increasing. However, traditional trade fair visits, personal customer appointments and technical workshops for maintaining existing customers and acquiring new customers are just as important to us.”
“Our direct access to the production process allows us to carry out close checks and guarantees consistently high quality.”
Further information:
multi-use transducer from SECO Sensor – compact, powerful, versatile
A multi-use transducer from SECO Sensor is the ideal solution for standard applications in air and gas. Thanks to its compact design and robust construction, this type of transducer is ideal for industrial applications where reliability and efficiency are required. It operates with a high echo voltage and a comparatively large beam width.
Whether distance measurement, wind measurement or level control: the multi-use transducer delivers stable measurement results – even in challenging conditions such as fog, dust or darkness. Its sophisticated design and immediate availability make it the preferred choice for companies that rely on fast, series-proven components.
With frequencies between 80 and 500 kHz and a range of up to several meters, the multi-use transducer is always a good choice.
