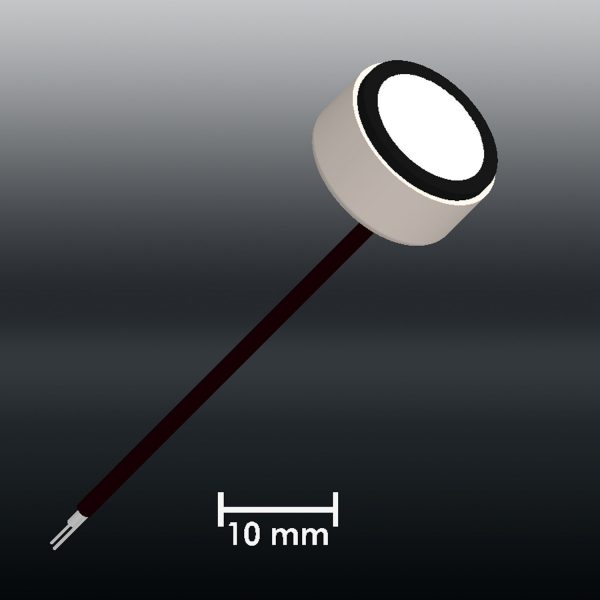

Focused transducer SC030

“Great range with the smallest resolution”

Features:

  • focused ultrasonic transducer
  • operating range 0.1 m to 0.9 m
  • resolution up to 1 mm possible
  • well focused sound lobe
  • small beam width
  • narrow bandwith in frequency

Data sheet SC030 (PDF)



We would be happy to provide you with test samples or consult you on a customized adaptation. We look forward to hearing from you!



Contact us

Bitte beachten Sie: Das abgebildete Produkt entspricht unserer Standard-Bauform. Das Gehäuse und die Kontaktierung sind auf Wunsch anpassbar. Wählen Sie auch aus unserer Zusatzaustattung.

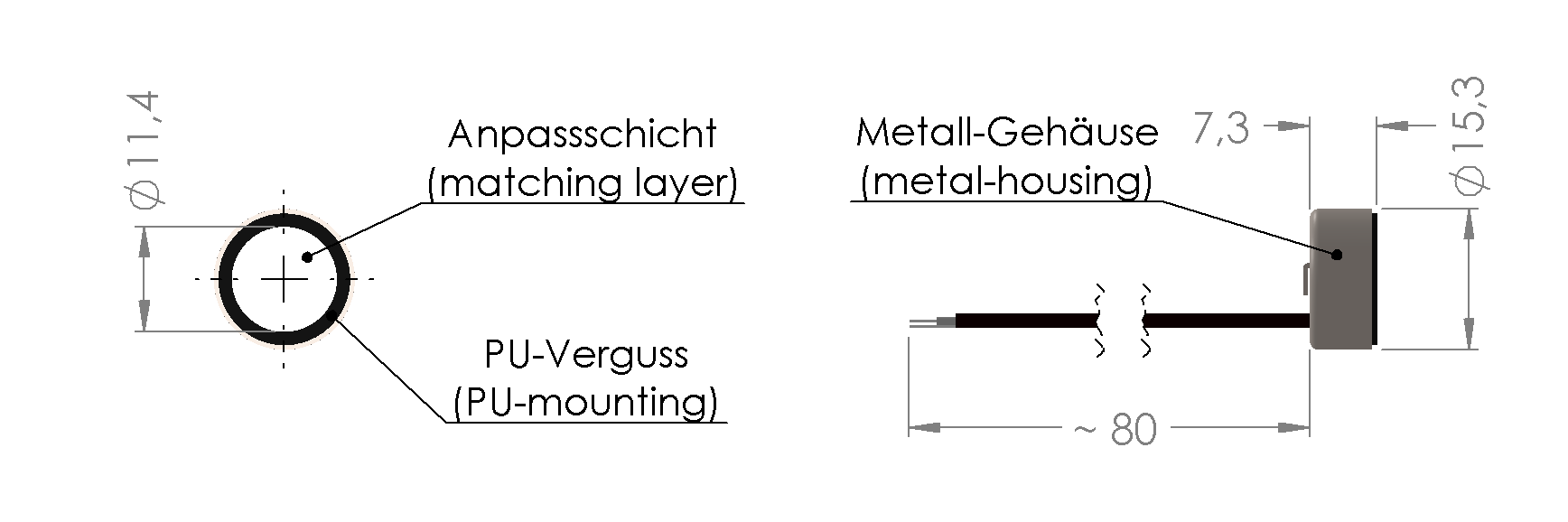

Please note: The product shown corresponds to our standard design. The housing and contacting can be customised on request. Also choose from our additional equipment.

Additional information

Durchmesser (mm)

Einbautiefe (mm)

typ. frequency range (kHz)

typ. operating range (mm)

blind zone (mm)

typ. beam width (°)
